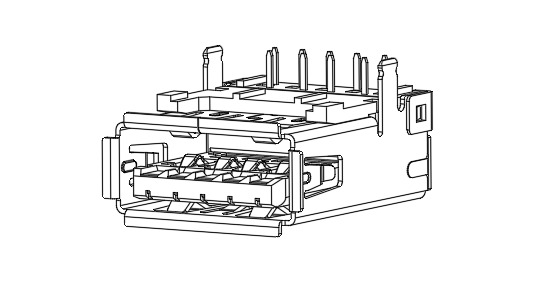

USB3.0 A-Type, R/A DIP

產品型號

33009xxx-2123xxH

產品敘述

A-Type, 9Pin R/A DIP, 7.12H

Physical Characteristic:
1. Material:
  1.1 Housing: PA9T+30%G.F.; Color: Black
  1.2 Cover: PA9T+30%G.F.; Color: Black
  1.3 Contact: Copper alloy
  1.4 Shell: Stainless steel

2. Finish:
  2.1 Contact: Ni 50u” Min. plated on overall, Au 30u” Min.
      Plated on the function area of contact.
      Matte Sn 80u” Min. plated on solder area.
2.2 Shell: Ni 50u” Min. plated on overall.

3. Electrical Characteristics:
  3.1 Current rating: 1.8A for pin1 & pin4.
        0.25A for others.
  3.2 Dielectric withstanding voltage: AC 100V for 1 minute.
  3.3 Insulation resistance: 100 MΩ Min.
  3.4 Contact resistance: 30mΩ Max.
3.5 Mating Force: 3.57kgf Max.
3.6 Unmating Force: 1.02kgf Min., 0.8kgf Min. after durability
  3.7 Durability: 5000 cycles
